NorthGlass Automation BU

Explore More

NorthGlass Automation line creates a modern intelligent glass processing factory !

Product List

Line

Stand-alone

Line

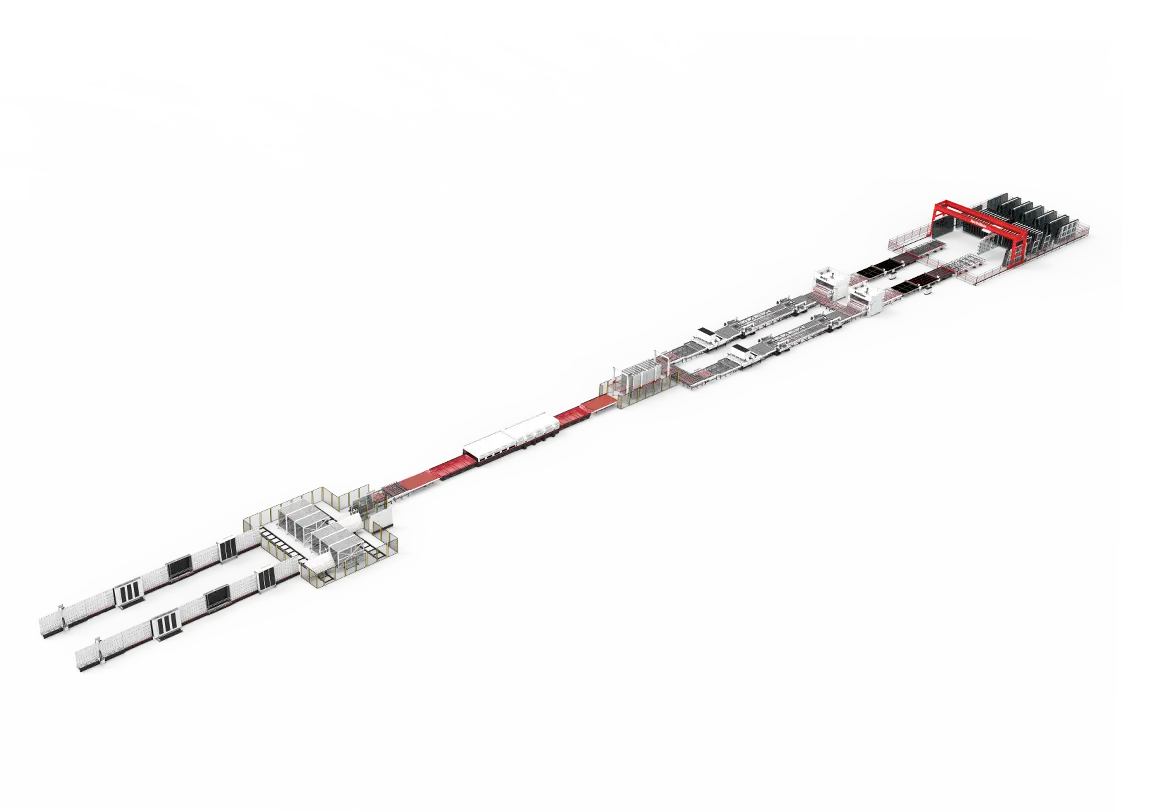

GLASS PROCESSING AUTOMATION LINE PLAN A

Features: Full automation solution, production mode is more flexible.Productivity is around 1000m² and labor is around 4 to 6 workers per shift (IG team is not included).Above data based on final actual configuration.

Line

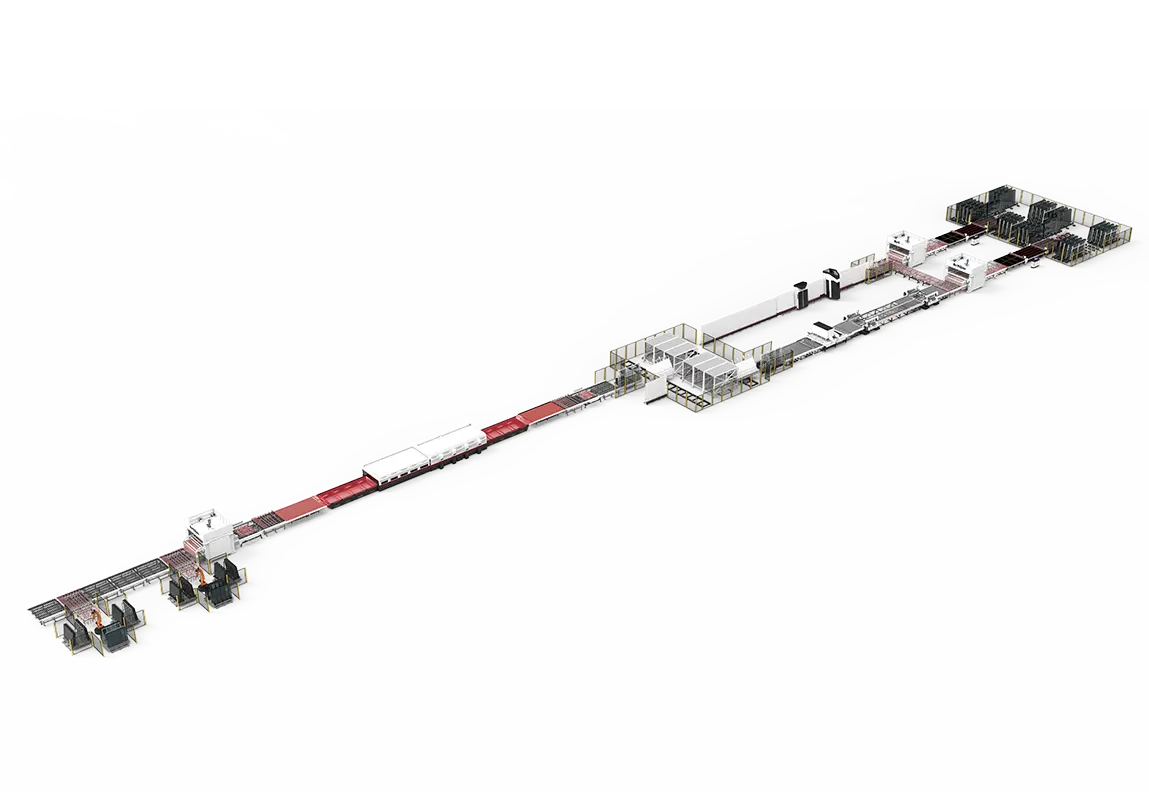

GLASS PROCESSING AUTOMATION LINE PLAN B

Features: Full automation solution, take less space and good for old factory upgrading.Productivity is around 1000m² and labor is around 4 to 6 workers per shift (IG team is not included).Above data based on final actual configuration.

Line

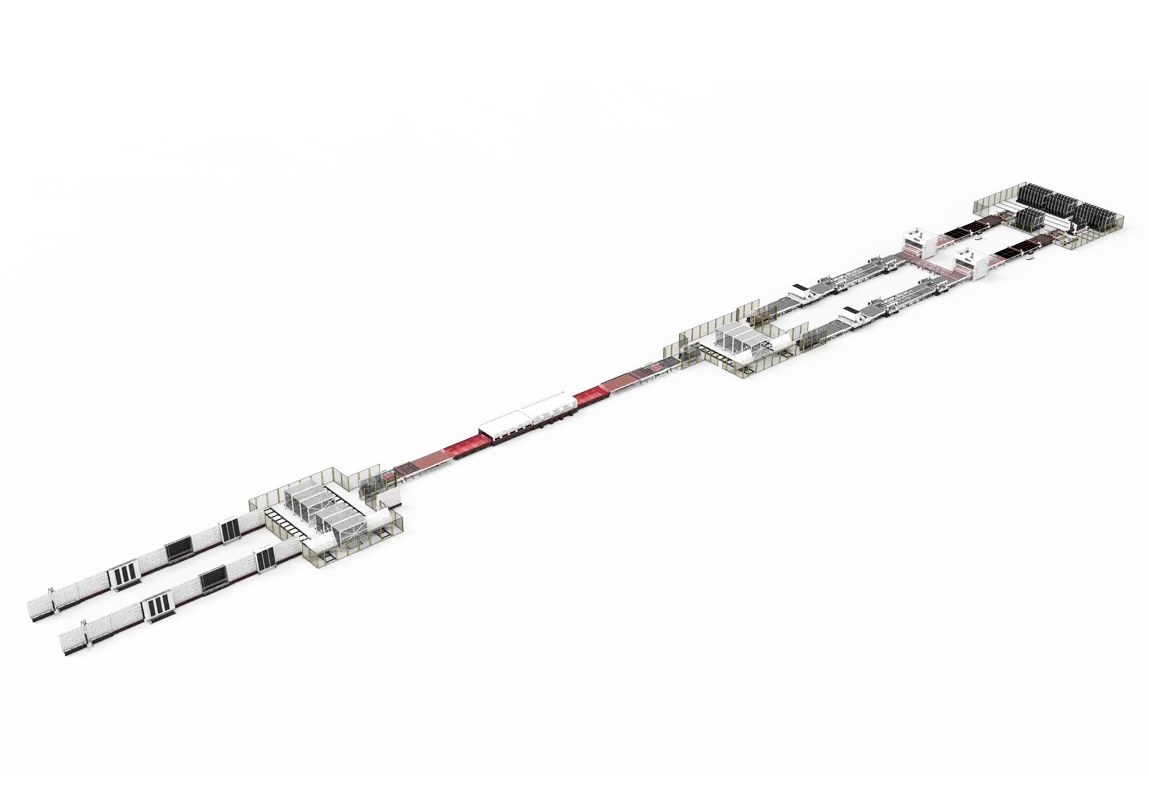

GLASS PROCESSING AUTOMATION LINE PLAN C

Features: Full automation solution, save space and less investment.Productivity is around 1000m² and labor is around 4 to 6 workers per shift (IG team is not included).Above data based on final actual configuration.

Stand-alone

SHUTTLE CAR TYPE GLASS STORAGE SYSTEM

Characteristic: Composed of shuttle, racks, rails, loading stations, entry station and control software. lt is fit for big quantity production and can be integrated with maximum 5 units cutting table.

Stand-alone

DRAWER TYPE GLASS STORAGE SYSTEM

Characteristic: Composed of racks, chasis, driving motors and control software. lt is fit for the glass type for cutting need to be changed oftenly.

Stand-alone

GANTRY TYPE GLASS STORAGE SYSTEM

Characteristic: Composed of racks, gantry system, rails, suction system and control software. lt is not only fit for quantity production, but also fit for the glass type for cutting need to be changed oftenly according to order.

Stand-alone

Residual Glass Storage

Characteristic: It is for store the residual glass after cutting, which can save the material cost. Worker can take and cut the glass from residual glass storage according to software's instruction.

Stand-alone

3 in 1 CUTTING TABLE

Characteristic: Loading, cutting and break out in one table, save space and good for small quantity production.

Stand-alone

CUTTING LINE

Characteristic: According to the optimazation result, automatically loading,cutting and break out mannualy (auto break out as option).

Stand-alone

LIFTING BUFFER SYSTEM

Characteristic: Composed of lifting conveyors,sorter lifting system and cotrol system. The glass can be stored horizontally in a grid layer by layer. The height can be up to 9 meters, which greatly save the space for glass factory. It is as the buffer in front of tempering furnace, on the other hand, it can be integrated with automatic batching system for loading the glasses for tempering furnace automatically and efficiently according to software.

Stand-alone

SORTER

Characteristic: Make double edging machine more efficient.

Stand-alone

VERTICAL SEAMING AND WASHING MACHINE

Characteristic: Composed of arrising section,conveyors,washing section and control software.Glass chamffering by resign or diamond wheels, automatically work with different thickness and glass size, save space.

Stand-alone

VERTICAL BUFFER SYSTEM

Characteristic: Composed of shuttles,sorters,sorter convevor, rails and control software in front of or behind tempering furnace,also can be integrated with automatic batching system for better loading rate for tempering furance or glass pairing for lG line.

Stand-alone

AUTOMATIC BATCHING SYSTEM FOR TEMPERING FURNACE

Characteristic: Automatically loading glass for tempering furnace with optimazation which can promise good tempering quality.

Stand-alone

LASER PRINTING TABLE

Characteristic: Composed of beam,laser printer,table and control software. According to order, print the company logo, QR code, bar code or CCC mark and so on. It is not only fit for automation production, but also save the cost of paper sticker.

Stand-alone

VERTICAL SORTER

Characteristic: It is composed of sorter, chassis and rails,measuring table, conveyor and control software.It can adjust glass sequence according to the requirements.

Stand-alone

AUTOMATIC GLASS BREAK-OUT MACHINE

Characteristic: Composed of conveyors, X and Y break out section and control software. Automatic glass break out in X or Y axis and trim remove, mostly adopt in appliance or solar automation line.

Stand-alone

RING TYPE SORTER

Characteristic: Can move single piece glass in and out from the horizontal glass sorter, and glass can be moved in and out in the ring sorter according to different types. Application: Mainly used for glass storage, loading, unloading and sorting in electronics, appliances and shower industry. It can stably and efficiently realize the automatic processing mode between each process.
